THOMSEN MILK PUMP
SKU
TP
As low as
$1,499.00
Thomsen milk pumps are the best pumps available, the craftsmanship and quality is unmatched.
This pump is a #5 (5" Diameter Pump)
Input is Tri-Clamp 2"
Output is Tri-Clamp 1.5"
Impeller Diameter is 4-1/8"
Requires a 7/8" Shaft motor
For your comparison here are some of the models we offer. If you are looking for one not listed below please give us a call.
|
Model |
HP |
Inlet |
Outlet |
Impeller |
Shaft |
|
#4 |
1 |
1.5" |
1.5" |
3-3/8" |
5/8" |
|
#4 |
1.5 |
1.5" |
1.5" |
3-5/8" |
5/8" |
|
#4 |
2 |
1.5" |
1.5" |
3-7/8" |
5/8" |
|
#4 |
2 |
1.5" |
1.5" |
3-7/8" |
7/8" |
|
#4 |
2 |
2" |
1.5" |
3-7/8" |
7/8" |
|
#5 |
2 |
2" |
1.5" |
4-1/8" |
7/8" |
|
#5 |
3 |
2" |
2" |
4-7/8" |
7/8" |
|
#6 |
3 |
2" |
2" |
5-1/8" |
1-1/8" |
|
#6 |
5 |
2" |
2" |
5-7/8" |
1-1/8" |
|
#8 |
7.5 |
3" |
2" |
7-5/8" |
1-3/8" |
 |
Pump Size

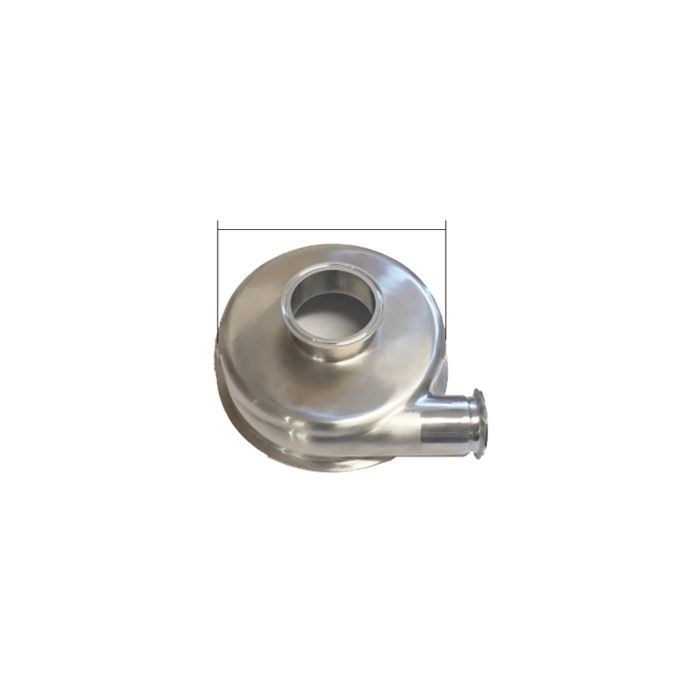

Thomsen Pump models can be easily found by taking a measurement of the Outside Diameter of the Pump Head. 4" OD is a #4 5" OD is a #5 6" OD is a #6 8" OD is a #8
|
 |
Inlet/Outlet Measurement
|
