Milking machines have revolutionized the way we collect milk, blending innovation with efficiency to make an otherwise labor-intensive task much more manageable. These fascinating pieces of equipment use a delicate balance of technology to mimic the natural process of milking, ensuring productivity and the animal’s comfort.

Understanding how milking machines work with this breakdown of milking equipment can help you make the most of their capabilities, effectively maintain them, and ensure a smooth milking process every time. Let’s take a closer look at the inner workings of this essential tool and uncover the science behind the seamless flow of milk.

The Milking Cluster

The milking cluster is the centerpiece of the milking machine, consisting of four teat cups connected to a central unit. Each teat cup has a liner inside, which gently pulsates to ensure efficient milk extraction without causing discomfort. The cluster also includes a claw, which collects the milk from all four teat cups before it flows into the milk pipeline.

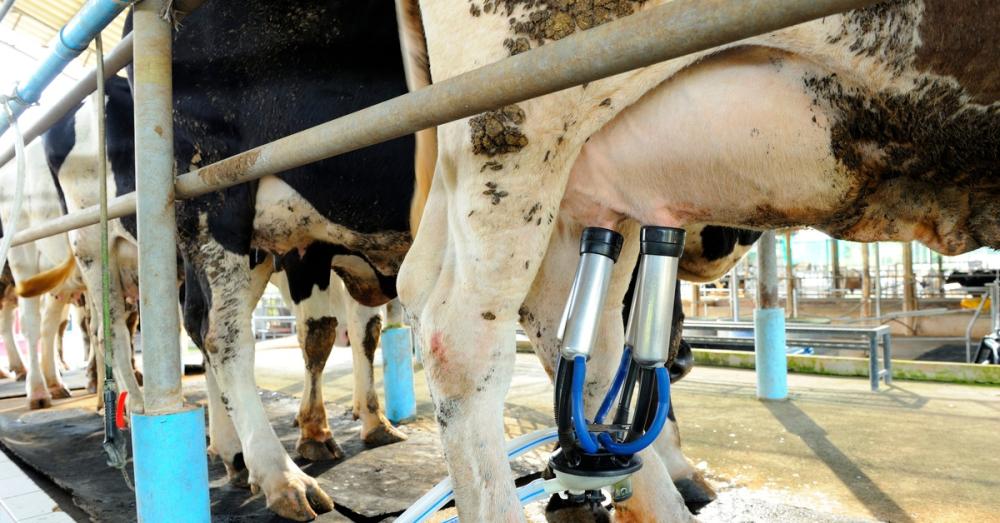

The hindquarters of a row of cows in a milking pen. Only the front most cow has milking cups attached to its udders.

Teat Cups

At the center of the milking cluster are the teat cups that gently attach to the cow’s teats. These cups create a secure yet comfortable connection that mimics the natural milk-suckling process. Each teat cup provides a snug fit to avoid causing unnecessary pain. Once on the udder, the teat cups work in unison with the rest of the milking machine to efficiently extract milk while maintaining the cow’s well-being.

Liners

The liners are vital within the teat cups. You may have heard this component referred to as the “business end” of the milking process—where machine meets organism. These soft, flexible components act as a cushion between the cow’s teat and the harder shell of the teat cup.

Liners ensure a gentle, effective seal that prevents air leakage while facilitating the massaging action that encourages natural milk flow. Liners consist of food-grade materials and prioritize hygiene and the cow’s comfort.

Milk Tubes

Once the machine has extracted the milk, it begins its swift travel through the milk tubes. These tubes serve as the pathway, carrying the milk from the teats to the central collection system. The milk tubes maintain quality and hygiene and ensure that the milk flows smoothly and remains uncontaminated.

This seamless transport system allows farmers to efficiently gather fresh milk, ready for further processing or storage. Altogether, the milking cluster components work in harmony to streamline the milking process, keeping it efficient and cow-friendly.

Milking Claw

The milking claw is truly the heart of the milking cluster, where all the action comes together. It acts as the central hub, connecting the teat cups and milk tubes while ensuring a steady and balanced flow of milk.

The claw can withstand rigorous use while remaining easy to clean with durable materials, such as stainless steel or high-grade plastic.

Milk from each teat combines inside the claw before smoothly flowing into the milk tubes, thanks in part to the vacuum system. The claw’s transparent casing also allows farmers to visually monitor the milk flow, ensuring everything is operating correctly.

Vacuum and Pulsation System

The vacuum system creates the necessary suction to extract milk efficiently from the cow’s udder. The system facilitates the steady flow of milk through the milking cluster and tubing by generating a controlled vacuum. An essential feature of the system is the pulsation mechanism, which alternates between vacuum and atmospheric pressure to mimic the natural suckling action of a calf.

The alternating phases also allow for milk flow during the suction phase, while the release phase provides the teat with a moment of rest, promoting proper blood circulation and reducing the risk of teat damage or irritation. As a result, the delicate tissue of the teat remains unharmed while maintaining consistent milk flow.

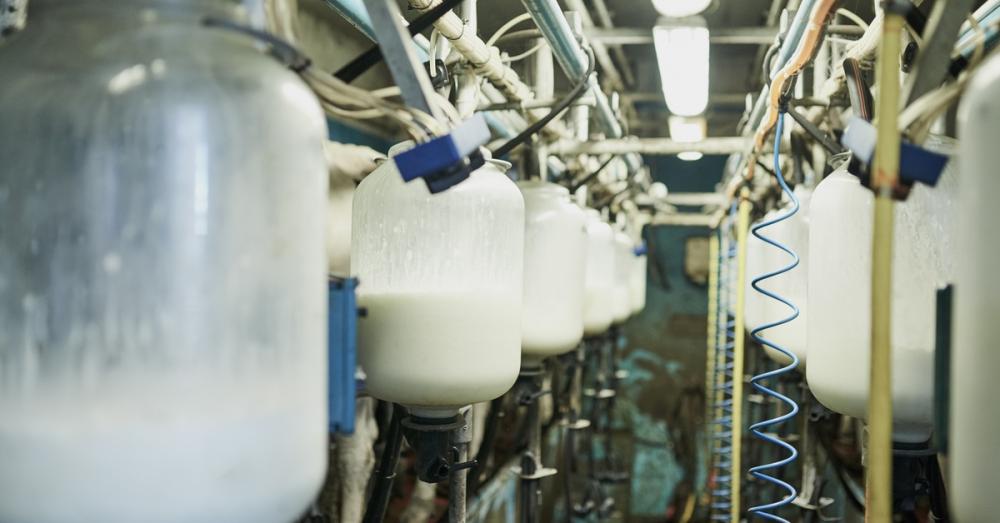

Two long rows of see-through industrial milk receivers filling with milk underneath bright white LED ceiling lights.

Milk Receiver

The milk receiver is a central component in the milking process, acting as the collection vessel where milk gathers before further processing or storage. The receiver is a sealed system and ensures farmers handle the milk in a clean and hygienic manner, preventing contamination that could compromise quality.

The receiver keeps the milk isolated from external impurities with filters and flow control mechanisms. It also facilitates smooth transfer to the next stage, whether that’s cooling or storage. Its robust design and seamless operation are key to preserving the purity and freshness of milk from the moment it leaves the cow.

Pipeline System

The pipeline system is the hardworking hero behind the scenes for larger dairy setups, ensuring milk makes its swift and seamless journey from the milking parlor directly to storage tanks. This system eliminates the need for manual handling, saving time and reducing the risk of contamination.

The pipeline system is an intricate network of stainless steel pipes designed to uphold the highest hygienic standards. These carefully sealed and regularly sanitized pipes maintain the milk’s purity and freshness. Cleaning-in-place (CIP) systems are common, allowing farmers to thoroughly clean pipelines without dismantling them, ensuring every drop of milk remains as clean and wholesome as it was at the source. Pipeline systems streamline operations while safeguarding the quality of the dairy’s most valuable product by combining efficiency with hygiene.

Milking Machine Cleaning Units

Milking machine cleaning units are critical for maintaining top-notch sanitation standards on modern dairy farms. These built-in washing systems ensure that every component of the milking equipment is thoroughly clean, leaving no residue behind. Proper cleaning is vital to prevent the buildup of milk, fat, and protein deposits that could compromise the milk’s quality and affect the equipment’s performance.

The best cleaning units come with features such as automatic rinse cycles, adjustable water temperature controls, and precisely measured detergent dispensing. These features work together to ensure that each wash cycle is effective and efficient. These systems eliminate harmful bacteria and residue, protecting the cows’ health and the integrity of the milk, giving farmers and consumers peace of mind. With the right milking machine cleaning units in place, cleanliness truly becomes second nature!

Understanding how milking machines work with this breakdown of milking equipment sheds light on the incredible efficiency and innovation behind modern dairy farming. These machines streamline the milking process and prioritize the health of the cows and the quality of the milk they produce.

Every component is vital to ensure cleanliness, productivity, and animal welfare, from gentle suction mechanisms to advanced cleaning units. That’s why the Parts Department provides an impressive lineup of cattle milking equipment, all in one place. We understand that the well-being of your milk yields and the health of your cows are top priority and we strive to provide you with the best equipment for your dairy farm.
