330 GALLON MILKPLAN COOLING TANK 240V
$13,995.00

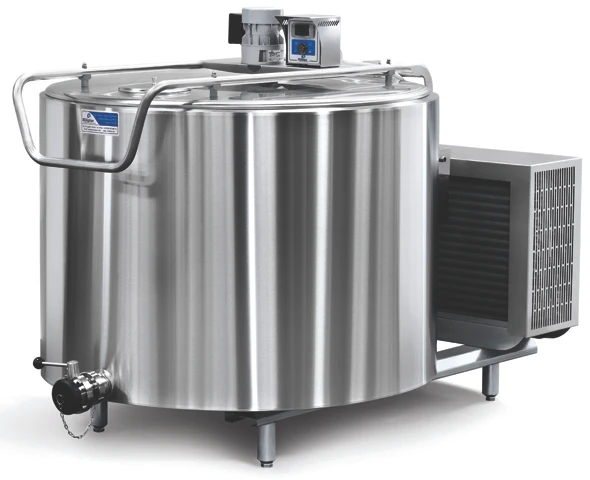

MilkPlan MP330 330-Gallon Milk Cooling Tank
The MilkPlan MP330 is a self-contained milk cooling tank designed for dairies, farmstead cheesemakers, goat dairies, and other milk-handling operations that need reliable cooling and programmable agitation. Its refrigeration and agitation systems work together to rapidly cool fresh milk and maintain a consistent temperature throughout the tank.
The MP330 provides dependable cooling capacity for growing dairy and farmstead processing operations. It requires 240V electrical service; final wiring and circuit protection should be confirmed by a qualified electrician.
330-gallon milk cooling with 240V operationA practical solution for dairy, goat dairy, and farmstead cheese-production operations.
MP330 Quick Specifications
ModelMP330
Operating Range50–339 Gallons
Electrical Supply240V
Tank Width59 Inches
Features and Benefits
- Self-contained refrigeration system for straightforward installation
- Sloped stainless-steel tank bottom promotes complete draining
- Adjustable leveling feet help stabilize the tank on uneven floors
- Programmable agitation duration and cycle intervals
- Manual agitation mode for mixing newly added fresh milk
- Lid safety switch stops the agitator when the main lid is opened
- Factory-programmed with commonly used operating parameters
- Separate 7-inch milk inlet with its own removable cover
- Fresh milk can be added without opening the main tank lid
- Milk inlet accommodates a strainer for filtering incoming milk
Capacity and Recommended Use
Nominal Size330 Gallons
Maximum Capacity339 Gallons
Minimum Operating Capacity50 Gallons
Estimated Herd Size30 Cows or 180 Goats
Herd-size estimates are approximate. Actual milk volume will vary by breed, animal, stage of lactation, milking frequency, and production level.
Grade A and Sanitary Design
The MilkPlan MP330 is manufactured for sanitary dairy applications and features stainless-steel product-contact surfaces, a covered milk inlet, a sloped tank bottom, and sanitary outlet components.
The tank is supplied with a Grade A sanitary butterfly valve, end cap, gasket, and clamp for the milk outlet.
Dimensions and Installation Clearances
All measurements below are shown in inches. The 330-gallon row is highlighted because it applies to this MP330 model.
| Tank Size | Width | Length | Height |
|---|---|---|---|
| 112-Gallon | 43" | 63" | 41" |
| 140-Gallon | 63" | 43" | 47" |
| 170-Gallon | 43" | 64" | 53" |
| 220-Gallon | 51" | 70" | 50" |
| 285-Gallon | 43" | 81" | 49" |
| 330-Gallon This Model | 59" | 81" | 59" |
| 400-Gallon | 59" | 90" | 65" |
| 525-Gallon | 59" | 90" | 65" |
Allow sufficient space above and behind the tank for the lid to open completely. Verify doorway dimensions, floor space, electrical access, ventilation, and service clearances before delivery.
What Is Included
- MilkPlan MP330 330-gallon stainless-steel cooling tank
- Self-contained refrigeration system
- Programmable agitation system
- Grade A sanitary butterfly valve
- Valve end cap
- Sanitary gaskets and clamps
- Stainless-steel dipstick
- Tank calibration chart
- Two-year manufacturer warranty
- Lifetime telephone technical support from Parts Department
Electrical and Installation Information
The MP330 operates on 240V power. Electrical service, circuit protection, disconnects, and wiring should be sized and installed by a qualified electrician in accordance with the equipment nameplate and applicable electrical codes.
Place the tank on a solid, level surface with adequate ventilation around the refrigeration unit. The adjustable feet can be used to level the tank and support proper drainage.
Electrical work should be completed by a qualified electrician. Confirm final installation requirements before connecting or operating the tank.
