30 GALLON MILKPLAN COOLING TANK 110V

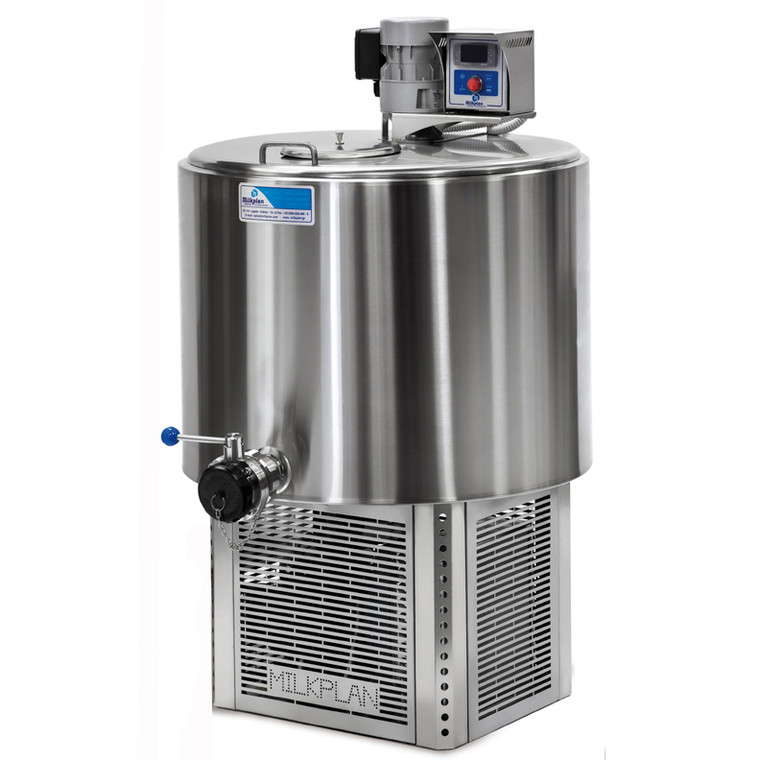

MilkPlan MP30 30-Gallon Milk Cooling Tank
The MilkPlan MP30 is a compact, self-contained milk cooling tank designed for small dairies, homesteads, goat dairies, farmstead cheesemakers, and other lower-volume milk-handling operations. Its refrigeration and agitation systems work together to rapidly cool fresh milk and maintain a consistent temperature throughout the tank.
The MP30 provides professional milk cooling without the space and electrical requirements of a full-size bulk tank. It operates from a dedicated 110V, 20-amp circuit, so no 240V electrical service is required.
MP30 Quick Specifications
Features and Benefits
- Self-contained refrigeration system for straightforward installation
- Sloped stainless-steel tank bottom promotes complete draining
- Adjustable leveling feet help stabilize the tank on uneven floors
- Programmable agitation duration and cycle intervals
- Manual agitation mode for mixing newly added fresh milk
- Lid safety switch stops the agitator when the main lid is opened
- Factory-programmed with commonly used operating parameters
- Separate 7-inch milk inlet with its own removable cover
- Fresh milk can be added without opening the main tank lid
- Milk inlet accommodates a strainer for filtering incoming milk
Capacity and Recommended Use
Herd-size estimates are approximate. Actual milk volume will vary by breed, animal, stage of lactation, milking frequency, and production level.
Grade A and Sanitary Design
The MilkPlan MP30 is manufactured for sanitary dairy applications and features stainless-steel product-contact surfaces, a covered milk inlet, a sloped tank bottom, and sanitary outlet components.
The tank is supplied with a Grade A sanitary butterfly valve, end cap, gasket, and clamp for the milk outlet.
Dimensions and Installation Clearances
All measurements below are shown in inches. The lettered headings correspond directly to the manufacturer’s dimensional drawing. The 30-gallon row is highlighted because it applies to this MP30 model.
| Tank Size | A | A1 | A2 | B | B1 | B2 | H | H1 | H2 | H3 |
|---|---|---|---|---|---|---|---|---|---|---|
| 15-Gallon | 22.0" | 11.0" | 14.4" | 20.5" | 11.0" | 14.4" | 53.1" | 41.3" | 32.3" | 17.3" |
| 30-Gallon This Model | 30.7" | 13.0" | 15.7" | 26.8" | 16.1" | 19.7" | 65.4" | 46.9" | 38.6" | 16.5" |
| 60-Gallon | 40.6" | 20.9" | 24.0" | 35.0" | 20.9" | 24.0" | 59.8" | 48.0" | 39.0" | 16.5" |
| 90-Gallon | 44.5" | 20.9" | 24.4" | 39.0" | 20.9" | 24.0" | 66.9" | 49.2" | 40.6" | 16.5" |
Dimension Key
What Is Included
- MilkPlan MP30 30-gallon stainless-steel cooling tank
- Self-contained refrigeration system
- Programmable agitation system
- Grade A sanitary butterfly valve
- Valve end cap
- Sanitary gaskets and clamps
- Stainless-steel dipstick
- Tank calibration chart
- Two-year manufacturer warranty
- Lifetime telephone technical support from Parts Department
Electrical and Installation Information
The MP30 operates on 110V power and requires a dedicated 20-amp circuit. The receptacle, circuit protection, and wiring should comply with all applicable electrical codes.
Place the tank on a solid, level surface with adequate ventilation around the refrigeration unit. The adjustable feet can be used to level the tank and support proper drainage.
