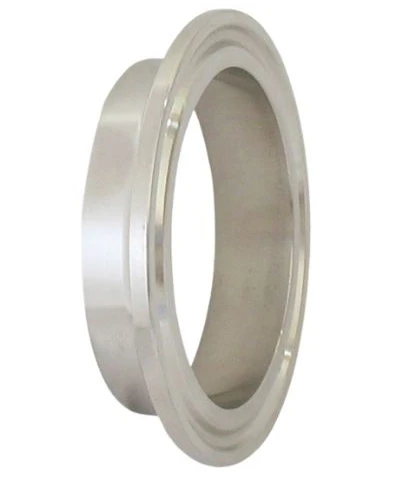

2-1/2" Short Weld-On Sanitary Clamp Ferrule
This 2-1/2" short weld-on ferrule is a VNE stainless-steel sanitary fitting used to add a clamp-style connection to compatible stainless dairy or sanitary pipeline tubing.
The short weld-neck profile keeps the permanent welded section compact while still providing the sanitary ferrule face needed for a removable gasket-and-clamp connection.
Key Features
- Nominal size: 2-1/2"
- Short weld-on ferrule configuration
- Stainless-steel construction
- VNE sanitary fitting
- Permanent weld connection to compatible tubing
- Clamp-style connection on the equipment side
- Useful for milk, CIP, and sanitary transfer piping
- SKU: 65232
Why Use a Short Weld Ferrule?
The short ferrule provides a compact way to terminate stainless tubing with a sanitary clamp connection. This can be useful where installation space is limited or where additional weld-neck length is not required.
Complete the Sanitary Connection
After the ferrule is welded into the pipeline, connect the mating sanitary fitting using the correct 2-1/2" gasket and clamp. The ferrule face and mating fitting should be clean and properly aligned before tightening the clamp.
Short vs. Long Weld Ferrule
If additional straight weld-neck length is preferred, see the 2-1/2" Long Weld-On Ferrule – SKU 65222.
Available Short Weld-On Ferrule Sizes
- 1-1/2" Short Weld-On Ferrule – SKU 65230
- 2" Short Weld-On Ferrule – SKU 65231
- 2-1/2" Short Weld-On Ferrule – SKU 65232
- 3" Short Weld-On Ferrule – SKU 65233
- 4" Short Weld-On Ferrule – SKU 65234
View all Sanitary Tees, Caps, Elbows & Ferrules »
Contact Parts Department at 800-245-8222 for help matching weld ferrules, gaskets, clamps, and related sanitary fittings.
