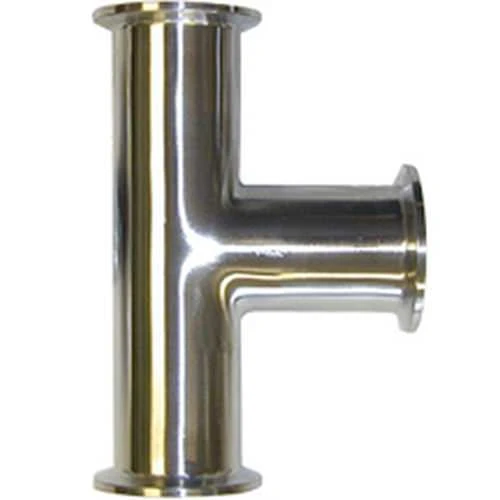

2-1/2" Stainless Steel Sanitary Tee with Clamp Ends
This 2-1/2" stainless steel sanitary tee creates a three-way branch in compatible dairy milk, wash, and transfer pipelines. All three openings use the same 2-1/2" sanitary clamp-style connection for a clean, serviceable pipeline layout.
The equal-size configuration allows the main pipeline to continue through the tee while adding a full-size 2-1/2" branch at 90 degrees.
Key Features
- Size: 2-1/2"
- Equal-size sanitary tee
- Stainless-steel construction
- Clamp-style connection on all three ends
- Creates a perpendicular branch from a straight pipeline
- Suitable for milk-transfer and CIP plumbing
- VNE fitting
- SKU: 65032
Designed for Serviceable Pipeline Connections
Clamp fittings allow the tee to be installed or removed without cutting or permanently welding the entire connection together. This is useful in milkhouse piping where equipment may need to be serviced, rearranged, or replaced later.
Complete the Connection
Use compatible 2-1/2" sanitary gaskets and clamps at each connection point. Always match the fitting size to the mating ferrule rather than estimating by the outside diameter of the clamp flange.
Available Tee Sizes
- 1-1/2" Stainless Tee – SKU 65030
- 2" Stainless Tee – SKU 65031
- 2-1/2" Stainless Tee – SKU 65032
- 3" Stainless Tee – SKU 65033
- 4" Stainless Tee – SKU 65034
View all Sanitary Tees, Caps, Elbows & Ferrules »
Need Help Selecting Pipeline Fittings?
Contact Parts Department at 800-245-8222 for assistance matching your pipeline diameter and connection style.
