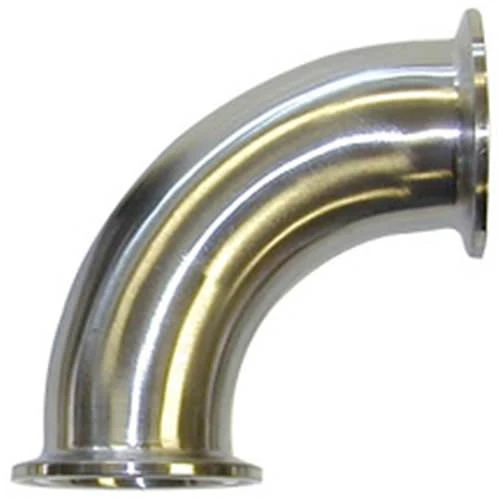

4" Stainless Steel 90° Elbow with Clamp Ends
This 4" stainless steel 90-degree elbow is designed for sanitary dairy pipeline installations where the milk, wash, or transfer line needs to change direction while maintaining removable clamp-style connections at both ends.
The smooth 90-degree bend provides a permanent change in pipeline direction without requiring multiple adapters, while the sanitary clamp ends allow the elbow to be removed for installation, inspection, or system modification.
Key Features
- Nominal pipeline size: 4"
- 90-degree elbow configuration
- Stainless-steel construction
- Sanitary clamp connection at both ends
- Suitable for dairy milk, wash, and sanitary transfer piping
- Removable connection simplifies installation and service
- SKU: 65024
Where a 90-Degree Elbow Is Used
Elbows are used whenever a sanitary pipeline must turn around equipment, transition between horizontal and vertical runs, or route milk or wash solution through the milkhouse. The 90-degree configuration provides a clean right-angle change in direction while maintaining a continuous stainless pipeline.
Clamp-Style Connections
Each end is designed to mate with a compatible sanitary clamp ferrule. A correctly sized gasket fits between the two mating ferrules and the clamp secures the connection.
Clamp-style joints are especially useful in dairy systems because individual fittings can be removed without cutting the pipeline.
Select the Correct Size
This elbow is for 4" sanitary pipeline. Verify the outside pipeline/ferrule size before ordering, particularly when working on an existing system with several different line diameters.
View all Sanitary Tees, Caps, Elbows & Ferrules »
Need Help with a Pipeline Fitting?
Contact Parts Department at 800-245-8222 for help matching elbows, ferrules, clamps, and gaskets to your dairy pipeline.
