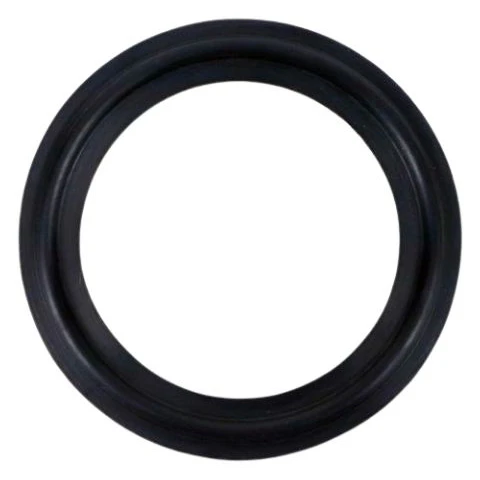

2" Rubber Tri-Clamp Gasket
This 2" rubber tri-clamp gasket provides the sealing surface between compatible sanitary clamp ferrules used in dairy milk, wash, and transfer pipelines. The gasket fits between the two mating ferrule faces before the sanitary clamp is tightened around the connection.
Tri-clamp gaskets are simple but critical service components. A damaged, hardened, flattened, or incorrectly sized gasket can allow leakage or prevent the clamp connection from seating correctly.
Key Features
- Nominal size: 2"
- Rubber gasket construction
- For compatible sanitary tri-clamp connections
- Seals between two mating clamp ferrules
- Suitable for dairy milk, wash, and sanitary transfer piping
- Replaceable routine-maintenance component
- SKU: 65064
How a Tri-Clamp Gasket Works
The gasket sits in the matching grooves between two sanitary ferrule faces. When the clamp is installed and tightened, the gasket is compressed between the fittings to create the seal.
The gasket should sit evenly between the ferrules before the clamp is tightened. A gasket that is pinched, twisted, cut, or pushed out of position can prevent the connection from sealing properly.
When to Replace the Gasket
Inspect the gasket whenever the connection is opened. Replace it if the sealing surface becomes cracked, cut, flattened, stretched, hardened, or permanently distorted.
This 2" gasket is also used in sanitary assemblies such as compatible milk-tank, hose, and bottle-filling connections that use standard 2" clamp fittings.
Available Rubber Tri-Clamp Gasket Sizes
- 1-1/2" Rubber Tri-Clamp Gasket – SKU 65063
- 2" Rubber Tri-Clamp Gasket – SKU 65064
- 2-1/2" Rubber Tri-Clamp Gasket – SKU 65065
- 3" Rubber Tri-Clamp Gasket – SKU 65066
- 4" Rubber Tri-Clamp Gasket – SKU 65067
Silicone Alternative
For applications where a silicone gasket is preferred, see the 2" Silicone Tri-Clamp Gasket – SKU 65081.
View all Sanitary Gaskets & Clamps »
Need Help Matching a Gasket?
Contact Parts Department at 800-245-8222 for help confirming clamp size, gasket material, or sanitary fitting compatibility.
