COOLING TRANSPORT TANK 396 GALLON
$19,995.00
MilkPlan TT Series Refrigerated Milk Transport Tanks
The MilkPlan TT Series provides a practical solution for collecting, cooling, and transporting fresh milk from dairy farms to processing facilities.
Designed for installation on trucks and trailers, these refrigerated tanks feature durable AISI 304 stainless steel construction, integrated cooling, and automatic milk agitation to help maintain milk quality during collection and transportation.
Available in five sizes from approximately 140 to 555 gallons, these tanks are well suited for mobile milk collection, including operations serving farms without permanent milk storage or cooling equipment.
Key Features
- Mobile-Ready Design: Horizontal tank construction with stainless steel mounting legs for truck or trailer use.
- Integrated Refrigeration: Copeland Scroll compressor using R454C refrigerant.
- Stainless Steel Construction: AISI 304 stainless steel tank with smooth, polished interior welds.
- High-Density Insulation: Polyurethane foam insulation helps minimize heat transfer.
- Automatic Agitation: Gentle, low-speed mixing helps maintain consistent milk temperature.
- U.S. Electrical Configuration: Designed for 220V / 60Hz / single-phase power.
- Optional Automatic Washing: Programmable cleaning systems are available for easier sanitation.

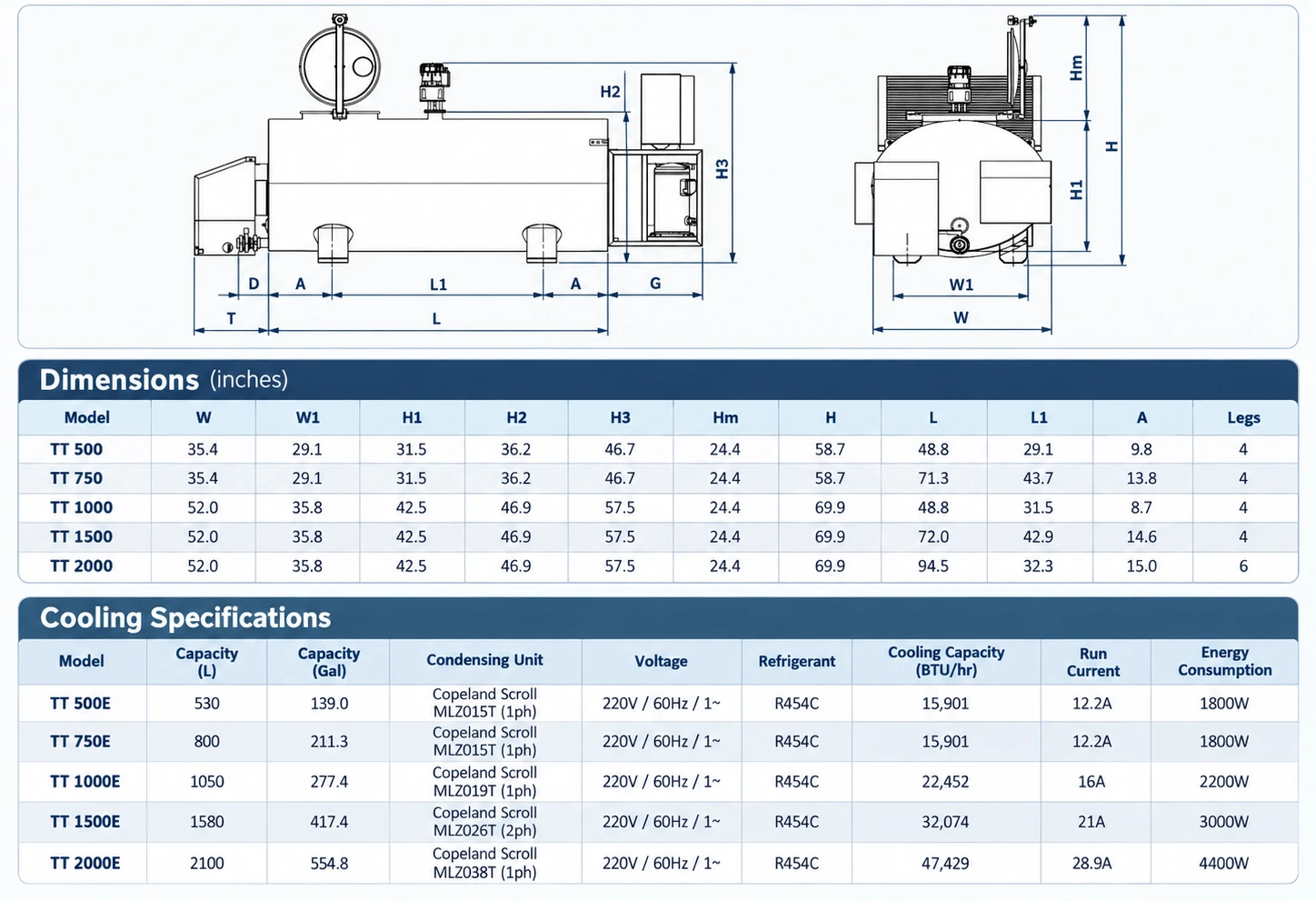

Available Tank Sizes
Choose from five models to match your milk collection and transportation needs.
| Model | Maximum Capacity | Cooling Capacity | Run Current |
|---|---|---|---|
| TT 500E | 140 Gallons | 15,901 BTU/hr | 12.2 A |
| TT 750E | 211 Gallons | 15,901 BTU/hr | 12.2 A |
| TT 1000E | 277 Gallons | 22,452 BTU/hr | 16 A |
| TT 1500E | 417 Gallons | 32,074 BTU/hr | 21 A |
| TT 2000E | 555 Gallons | 47,429 BTU/hr | 28.9 A |
Capacities are approximate U.S. gallons. Cooling capacities are based on manufacturer rating conditions. Electrical supply for all models: 220V / 60Hz / single phase.
Additional Product Information
Tank Construction & Insulation
Each tank is manufactured from AISI 304 stainless steel and features a single-compartment, horizontal design.
- 2 mm stainless steel inner tank
- 1.5 mm stainless steel outer shell
- High-density polyurethane foam insulation
- Smooth interior surfaces and rounded corners
- 15.7" watertight stainless steel manhole
- 2" outlet cap with retaining chain
- Stainless steel mounting legs
- CIP washing tube and spray ball
The polished interior is designed to make cleaning easier and support hygienic milk handling.

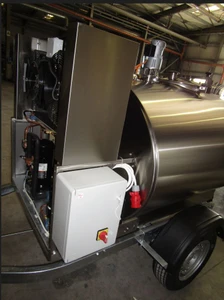

Refrigeration & Agitation System
Each tank is equipped with a Copeland Scroll refrigeration system using R454C refrigerant.
- Integrated refrigeration compressor
- High- and low-pressure protection
- Electrical voltage monitoring protection
- Automatic milk agitation system
- Low-speed 25 RPM agitation motor
- One-piece stainless steel agitation paddle
The agitation system gently circulates the milk to help maintain an even temperature throughout the tank.
Temperature Control & Automatic Washing
The TT Series offers digital cooling controls and optional programmable washing systems.
Digital Temperature Control
- Digital milk temperature display
- Adjustable cooling temperature settings
- Automatic refrigeration control
- Automatic intermittent milk agitation
Optional MPP Automatic Washing System
The programmable washing system can perform multiple cleaning stages, including:
- Cold-water pre-rinse
- Hot-water pre-rinse
- Hot-water detergent or acid wash
- Hot-water rinse
- Cold-water final rinse
Washing systems are available in tank-mounted or wall-mounted configurations. The automatic washing panel is optional and is not included unless specified.
Included Equipment & Available Options
Standard Tank Equipment
- Stainless steel insulated milk tank
- Integrated condensing unit
- Single-compartment milk vessel
- Automatic milk agitation motor and paddle
- Stainless steel mounting legs
- Cooling unit and protective dust covers
- CIP washing tube and spray ball
Available Optional Equipment
- Tank-mounted automatic washing system
- Wall-mounted automatic washing system
- Dixell digital temperature controller
- Agitation motor protective cover
- Milk measurement dipstick and capacity chart
Important: Truck or trailer is not included. Optional accessories and control configurations must be selected separately.
Need Help Choosing the Right Tank?
Contact Parts Dept. for assistance with tank sizing, refrigeration requirements, available options, and mobile installation. Call 800-245-8222.
